Lacework Rails Setup
Aluminum Lacework
Balustrading Setup
Full complete setup
This shows the panel feet and how they are attached to the bottom rails
Rail Assembly
Bread Loaf Hand Rail.
The bread loaf handrail system combines functionality and aesthetics, providing a safe and visually pleasing option for guiding and supporting people as they navigate different environments.
Bread Loaf Rail
70mm H x 70mm W
External Lug
106mm H x 83mm W x 26mm D
Internal Lug
93mm H x 70mm W x 26mm D
Traditional Hand Rail.
A traditional handrail system refers to a handrail design that is commonly found in classic or historical architectural styles. These handrails often have a more ornate and decorative appearance compared to modern or minimalist designs.
Traditional Rail
40mm H x 60mm W

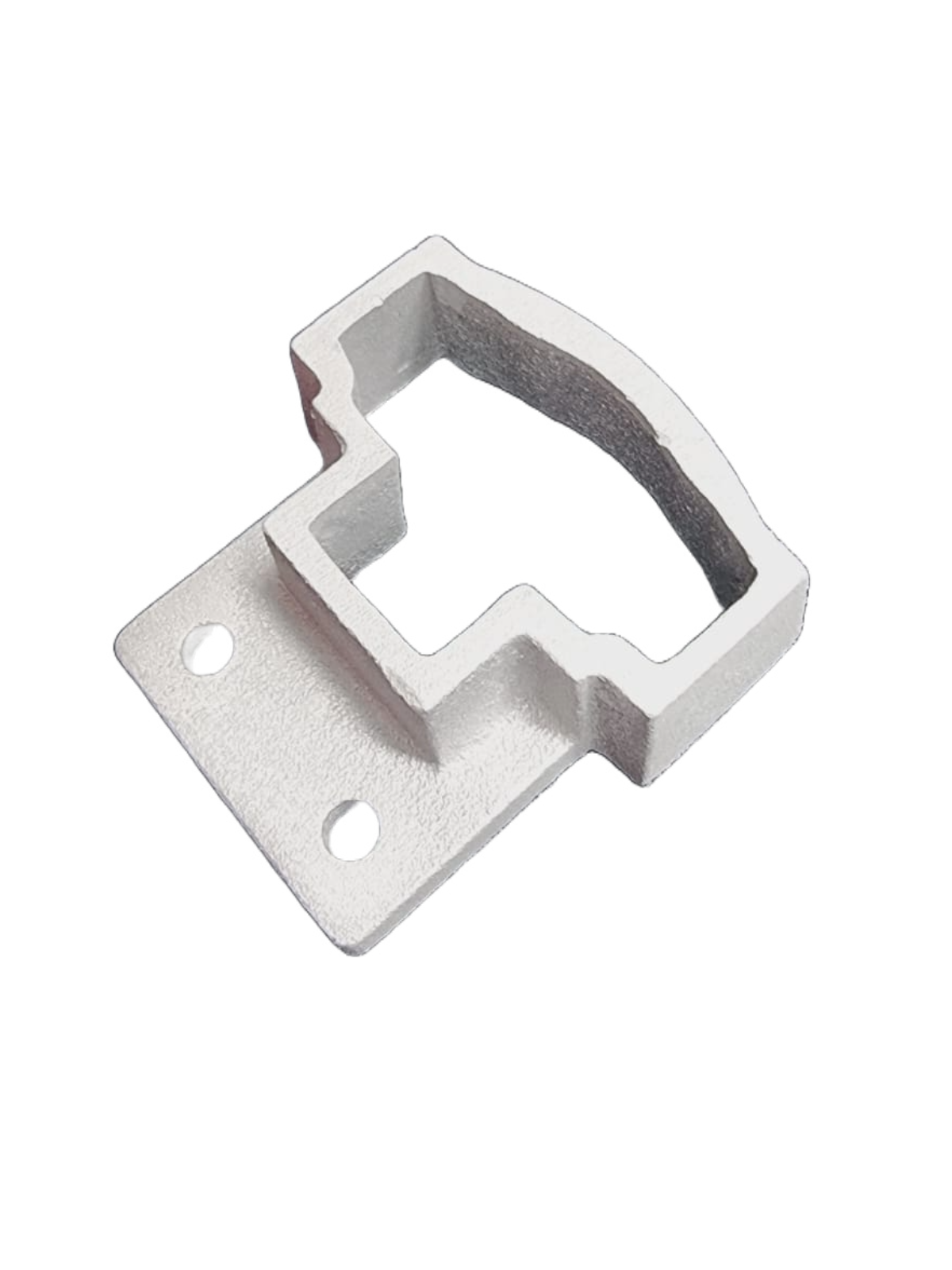

External Lug
76mm H x 72mm W x 25mm D
Traditional Rail Assembly
Internal Lug
73mm H x 62mm W x 27mm D
Bottom Rail.
While the primary purpose of the bottom rail is structural, it also contributes to the overall aesthetic of the railing system. Some railing designs may incorporate decorative elements or detailing into the bottom rail, especially in traditional or ornate styles..
Bottom Rail
20mm H x 40mm W
Support Leg
102mm H x 114mm W x 50 mm D
Bottom Rail Assembly
Total Height 105 mm
Bottom Rail Lug
62mm H x 44mm W
